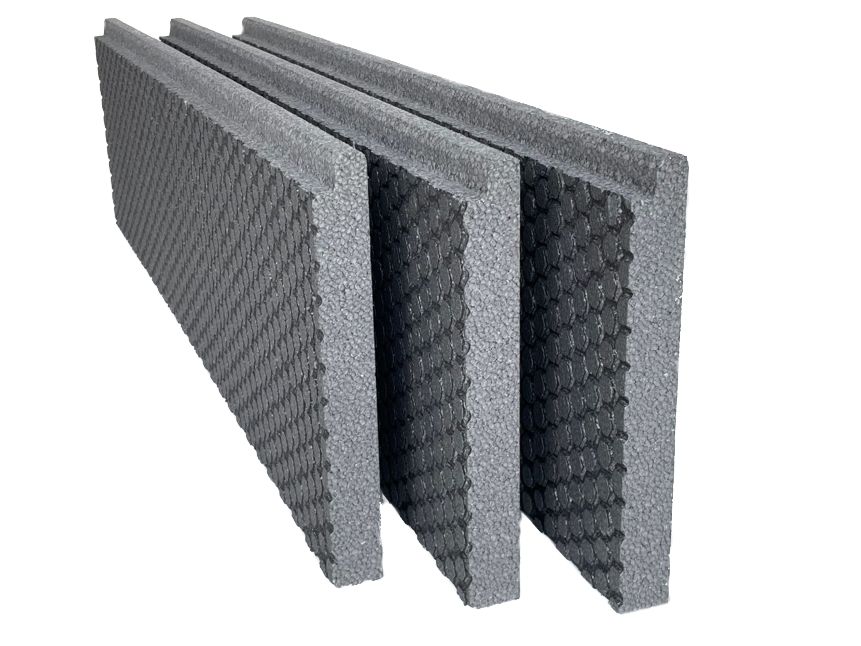

The Steico secure SGB base insulation panel offers a highly effective solution for façade zones exposed to splash water. Designed to integrate seamlessly with Steico’s 60 mm insulation boards—such as Steico protect or Steico duo dry—this panel features matching profiling for a tight fit and reliable protection.

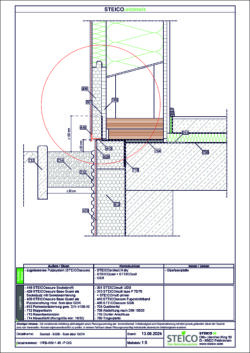

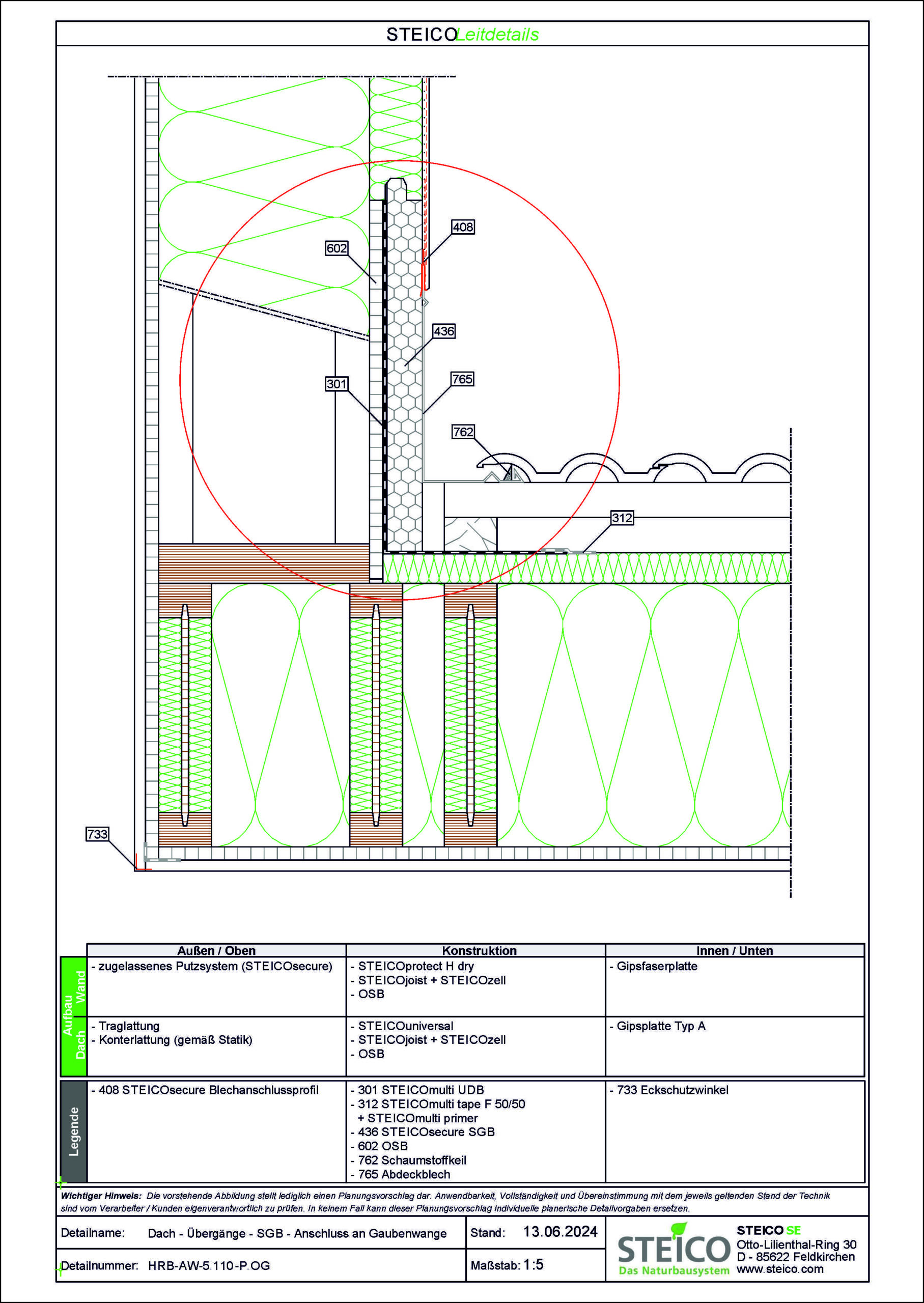

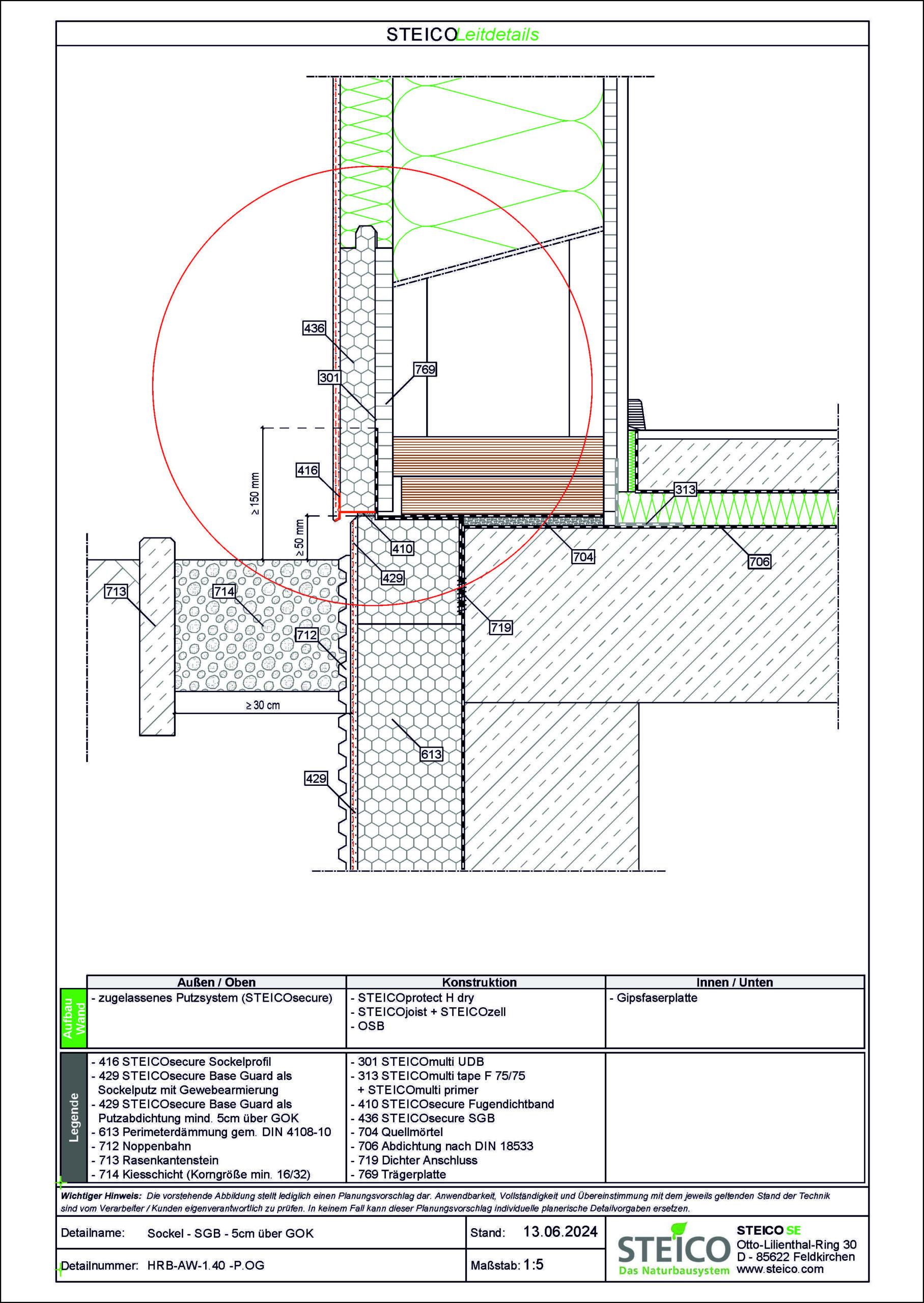

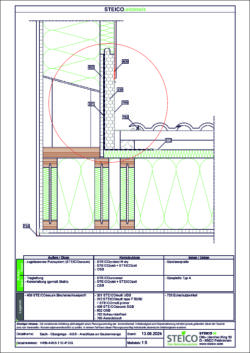

You install the 40 mm thick panel directly onto a base board with a sealing membrane and adhesive layer. This setup creates a robust and moisture-resistant barrier at critical transition points, such as between exterior walls and terraces, flat roofs, dormers, overhangs, or exposed roller shutter boxes.
Importantly, the panel supports plaster application, ensuring a uniform look across the façade. Additionally, it demonstrates excellent performance in thermal insulation, with a thermal conductivity of 0.031 W/mK and compressive strength of 150 kPa. Because the material resists aging and degradation, it provides a long-term, low-maintenance solution.
Moreover, the panel is suitable for sustainable building. It is solvent-free, complies with DIN EN 13163:2012, and is easy to recycle. However, do not use it in soil or areas subject to pressurized water.
Key Specifications:
-
Dimensions: 1200 mm × 325 mm × 40 mm
-
Fire rating: Class E (DIN EN 13501-1)
-
Temperature range: –
-
Disposal code: EWC/AVV 170604 / 170904
-
Unit: 1 panel = 0.39 m²
In conclusion, this product is perfect for builders looking for durable and eco-conscious insulation at the base of façades. It complements Steico’s insulation range perfectly.
